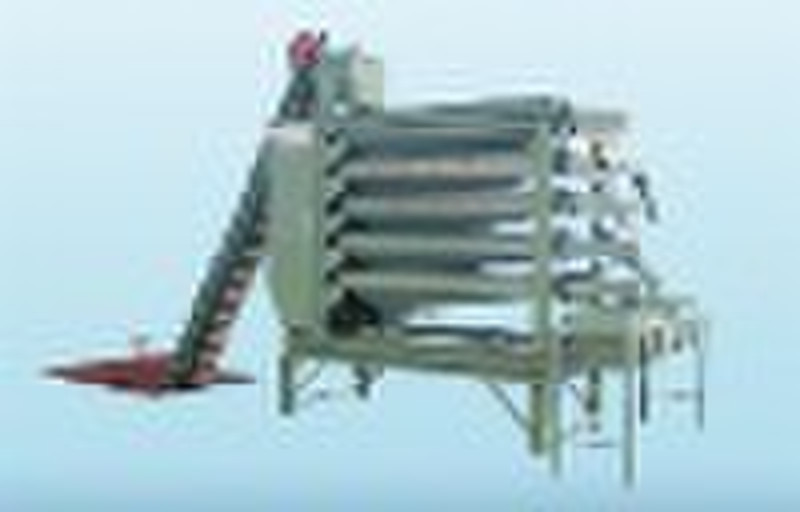

peanut grader

FEATURES This machine has a compact structure with reliable operation, using whole sieving which is convenient for operating and saving time and power, and the peanuts can be classified into 4 to 5 categories. The customers classification standard can be met after only one sieving This machine has obtained the merits of the same kind of home and abroad. It has simple but reasonable structure, high efficiency, low energy waste, and features of being reliable and convenient. Just because of these features,it isgood at screening shelled peanut and capable to meet the classifying standard only for once screen. CONSTRUCTION AND OPERATION PRINCIPLE Using wheels, chains with driving robs, screening –body, there is a box, which helps the machine to avoid unclear class caused by the unscreened materials fallen from the ends of upper screens. At both ends of every screen, there is a certain slope, which makes the materials flow down smoothly. MAIN TECHNICAL PARAMETER Type Body Size Total Weight (kg) Power Output Per Screen Size Screen Qty L×W×H Class(eight hours) L×W×H Per Floor GMSX60-4 2560×820×1680 800 1.1 KW 16TON 625×300×500 5pcs GMSX80-4 3280×985×1750 1200 1.5 KW 20TON 800×300×50 6pcs GMSX100-4 3530×1200×1820 1800 2.2 KW 40TON 1000×300×50 7pcs GMSX120-6 3710×1672×1500 8000 25.35KW 55TON 120×300×50 8pcs THE MATCHING NUMBER OF SHELLED PEANUT’S SIZE AND IRON SCREEN GMSX120 6Common shelled peanutSize and quantity of screenXiao bai shaSize and quantity of screensizesize24/289 5pcs 11.5 3pcs23/3511.5 6pcs 11.8 2pcs28/328.5 6pcs 10.5 2pcs35/4011 7pcs 11.5 1pcs34/387.5 6pcs 10.3 2pcs40/5010.3 4pcs 10.5 4pcs38/426.5 7pcs 9.5 1pcs50/607.5 4pcs 8 4pcs40/506 5pcs 6.5 3pcs60/706.5 8pcs70/805.5 4pcs 6 4pcsGMSX80-100 4Common shelled peanutSize and quantity of screenXiao bai shaSize and quantity of screensizesize24/289 5pcs 9.5 2pcs23/358.5 6pcs 9 4pcs28/328.5 6pcs 9 2pcs35/408 7pcs 8.5 2pcs34/387.5 6pcs 8 4pcs40/507.5 4pcs 8 4pcs38/426.5 7pcs 7.1 4pcs50/607.1 4pcs 7.5 4pcs40/506 5pcs 6.5 3pcs60/706 8pcs 6.5 5pcsTHE ORDER OF INSTALLATION AND THE CHECKING When the screens being fixed,it is to be fixed from the material-putting-in place successively.After every screen is ready, a check is necessary. When checked, accroding to the shellde peanut’s size and need, the one to two screens separately with bigger holes and smaller holes are to be changed by each other, until the ideal standard has been obtained. OPERATION Whether screws are loosed, whether there is any other things in every turning part, a careful check is necessary before operating the machine.After operated, it is good to the machine to drive for 3 to 5 minutes so as to check if any unexpected things occurred. The machine is to be stopped to repair at once when sop page has been foundThe material-putting-in opening should not be too wide and should be controlled at 2/3 measure of material-drawing box so that ther will not many shelled peanuts being leaked out,and the grain quantity requirement will not be impacted.When shelled peanuts of many sizes have been screened, a check in time is needed to see whether the result meets requirement, if not, one or more screens are to be changed.The producing standard has been got.MAINTAINING The rotating part of the machine is to be examine and lubricate usually eith lubricating-oil.Usually for outside reasons, the band of promoter may run out of its way a little, so regulating the screws tightly or loosely is necessary.Proper quantity of lubricating grease is to be rub onto the wheels and chains in time, but lubricating oil is prohibited so as not to dirt peanuts.When operarion stopped, any remained material on and in the machine is to be take out and the machine is to be cleaned, in this way, next operation will be normal and in good operating condition.When rotating, the wheels are to match tightly to avoid giving out noises and causing screens to vibrate excessively.
